Drug packaging serves a critical role. It is not just a simple container. It is a vital part of drug stability, safety, and effectiveness.For small-dose liquid medicines, the 5ml oral liquid glass bottle provides a reliable solution. It guarantees precise dosing and maintains excellent physical and chemical stability.It provides a user-friendly experience. This makes the bottle irreplaceable in pharmaceutical packaging. The following text details its materials, specifications, design benefits, and applications. It shows its core value as a precision packaging solution.
The performance of 5ml oral liquid glass bottles depends on their materials. The market mainly uses two glass types. Each type suits different drug properties and market needs.
Table 1: Comparison and Analysis of Main Materials of 5ml Oral Liquid Glass Bottles
| Characteristic indicators | Neutral borosilicate glass | Low borosilicate glass | Sodium-calcium glass |
| Chemical stability | Excellent | excellent | good |
| Water resistance | Compliant with USP Class I and EP Type I standards | Compliant with USP Class II and EP Type II standards | Meets USP Class III standards |
| acid resistance | Extremely strong | powerful | Strong |
| Alkali resistance | powerful | Strong | generally |
| Thermal shock resistance (ΔT) | ≥120℃ | ≥90℃ | ≥42℃ |
| Main applications | High value, pH sensitive, biological agent | Ordinary Chinese medicine and Western medicine oral liquid | Health products that do not require high chemical inertness |
| Cost considerations | higher | medium | economy |
Neutral borosilicate glass is a top-grade pharmaceutical material worldwide. It works especially well for pH-sensitive and highly active liquid drugs. These include some biological agents and special traditional Chinese medicines. This glass has extremely high chemical inertness. It guarantees no alkali metal ions will leak out. It also will not react with the drug solution during its entire shelf life. This offers the strongest protection for high-value medicines.
Low-borosilicate glass also shows excellent chemical stability. It meets the needs of most common oral liquids. This type offers the best balance between product performance and overall cost.
The 5ml oral liquid glass bottle design is a systems engineering task. It combines knowledge from pharmacy, materials science, and mechanical engineering. Every design dimension requires precise calculation. Each parameter also needs strict control.
Table 2: Comprehensive Technical Parameters of 5ml Oral Liquid Bottle
| Parameter categories | Technical Specifications and Description |
| nominal capacity | 5.0 ml |
| Full capacity | ≥ 6.5 ml (ensure accurate filling space and dosage) |
| Bottle outer diameter | 18.50 ± 0.50 mm |
| bottle height | 48.00 ± 0.50 mm |
| Bottle mouth outer diameter | 13.00 ± 0.30 mm (measured with standard calipers) |
| Bottle neck height | 7.50 ± 0.50 mm |
| Bottle wall thickness | ≥ 0.70 mm (to ensure mechanical strength) |
| Bottle bottom thickness | ≥ 1.20 mm (to ensure standing stability) |
| Annealing process | Precision annealing, maximum internal stress ≤ 40 nm/mm (eliminating the risk of cold explosion) |
| Appearance defects | No stones, no air bubbles (within specific specifications), no cracks |
The design focuses on several key aspects. First, volume is precisely controlled. This is done by strictly managing both the full-mouth and nominal volumes. This process guarantees every filled bottle contains exactly 5ml for the patient. Second, the scientific bottle proportions achieve a stable center of gravity distribution within the limited 5ml space, maintaining stability and preventing tipping even when filled with medications of varying densities. Finally, standardized bottle mouth dimensions provide a basis for subsequent sealing and capping operations, ensuring that bottles from different batches perfectly match the stopper and cap.

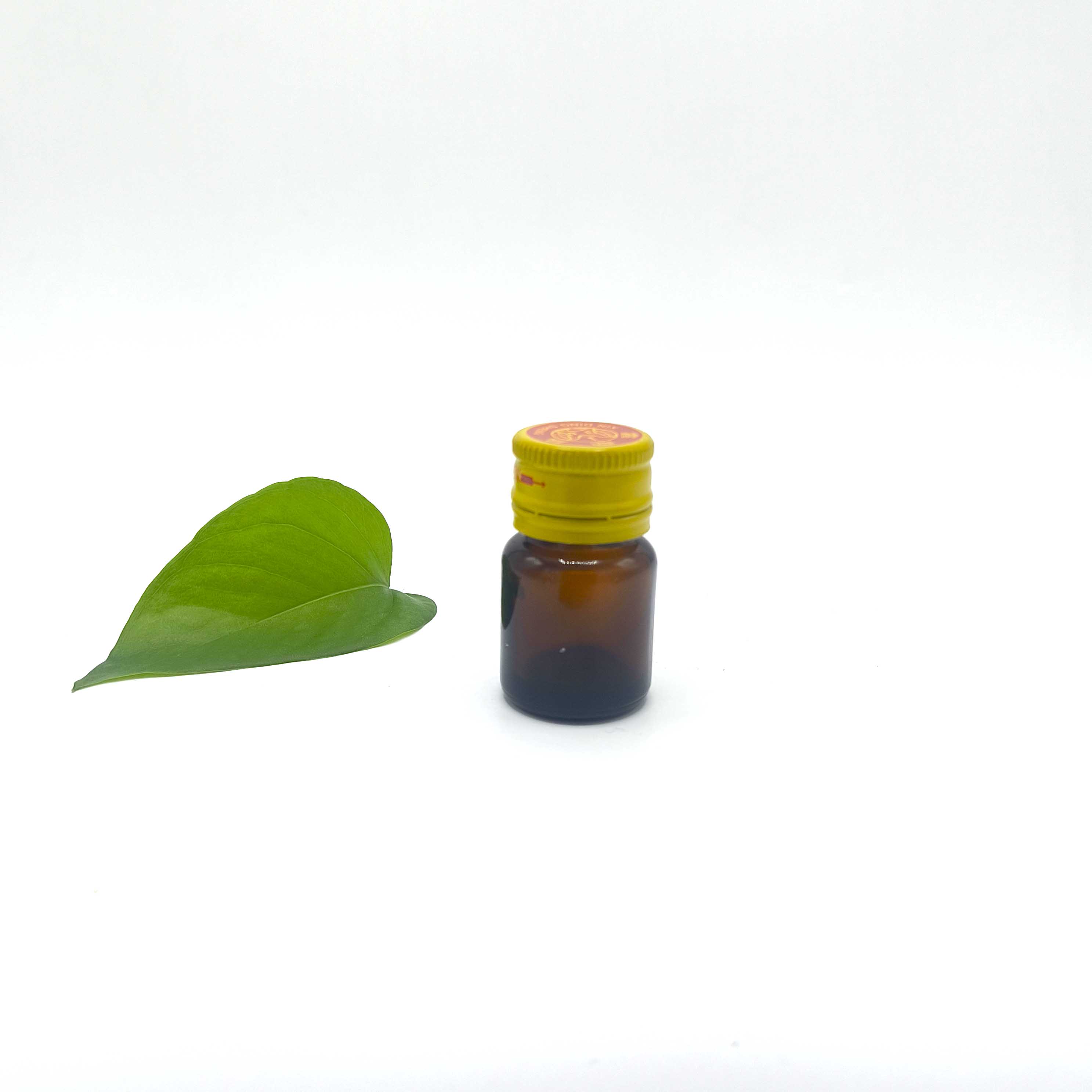

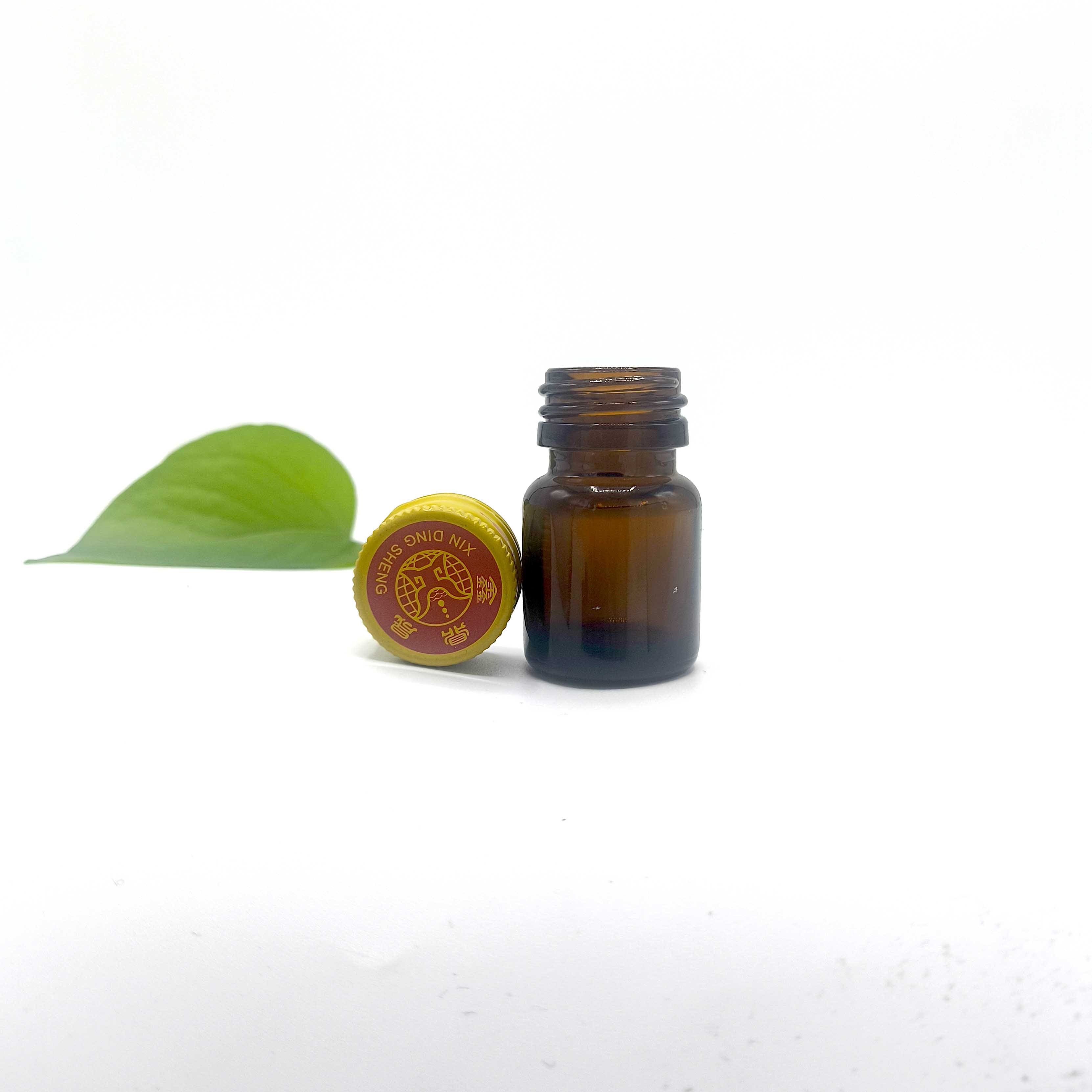

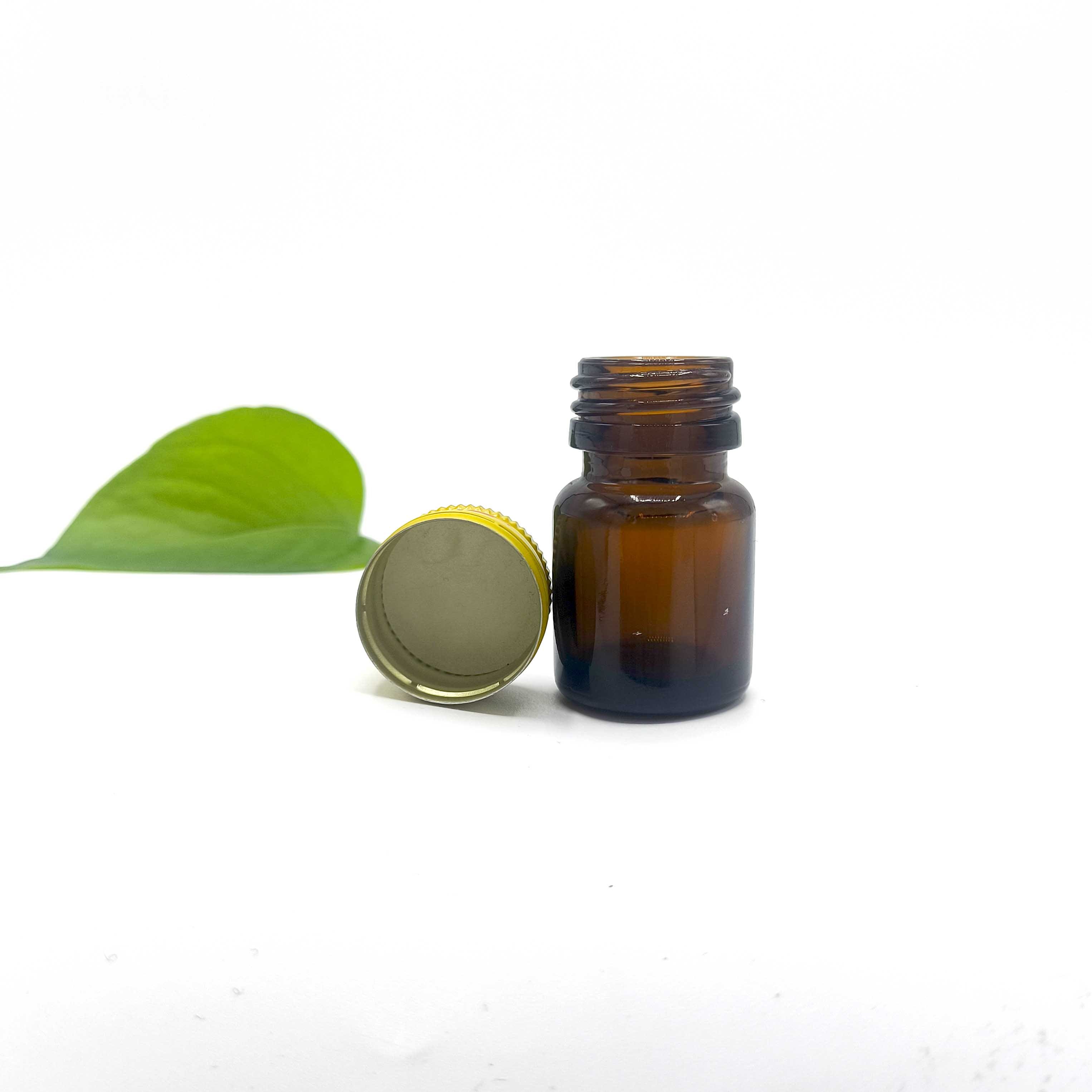

A complete 5ml oral liquid glass bottle packaging system consists of the bottle body, rubber stopper, and cap, each of which is crucial.
Table 3: Functional Table of Oral Liquid Bottle Sealing System Components
| Components | Material | Core Functions | Additional features |
| bottle body | borosilicate glass | The main container provides physical support and chemical protection. | Brown/amber provides light protection, while its transparency facilitates visual inspection. |
| rubber stopper | Halogenated butyl rubber | The primary sealing barrier is the one that directly contacts the liquid medicine. | Excellent sealing performance, low air permeability, and high puncture and chip removal properties. |
| Aluminum cap | aluminum alloy | Provides mechanical locking and secures the rubber plug. | Easy to tear, anti-theft function, printable surface |
| plastic lid | Polyethylene (PE) / Polypropylene (PP) | Protect bottle opening hygiene and enhance user experience | It can be designed as a child-safe lid, increasing the difficulty of opening. |
The sealing system uses triple protection. The inner layer is a butyl rubber stopper. Its elastic nature creates a tight seal. This prevents liquid evaporation and blocks outside air. The middle layer is an aluminum cap. It uses a mechanical rolling process. This process locks the rubber stopper firmly in place. The outer layer is a plastic cap. It keeps the bottle neck and aluminum cap clean. It also carries branding and user information.

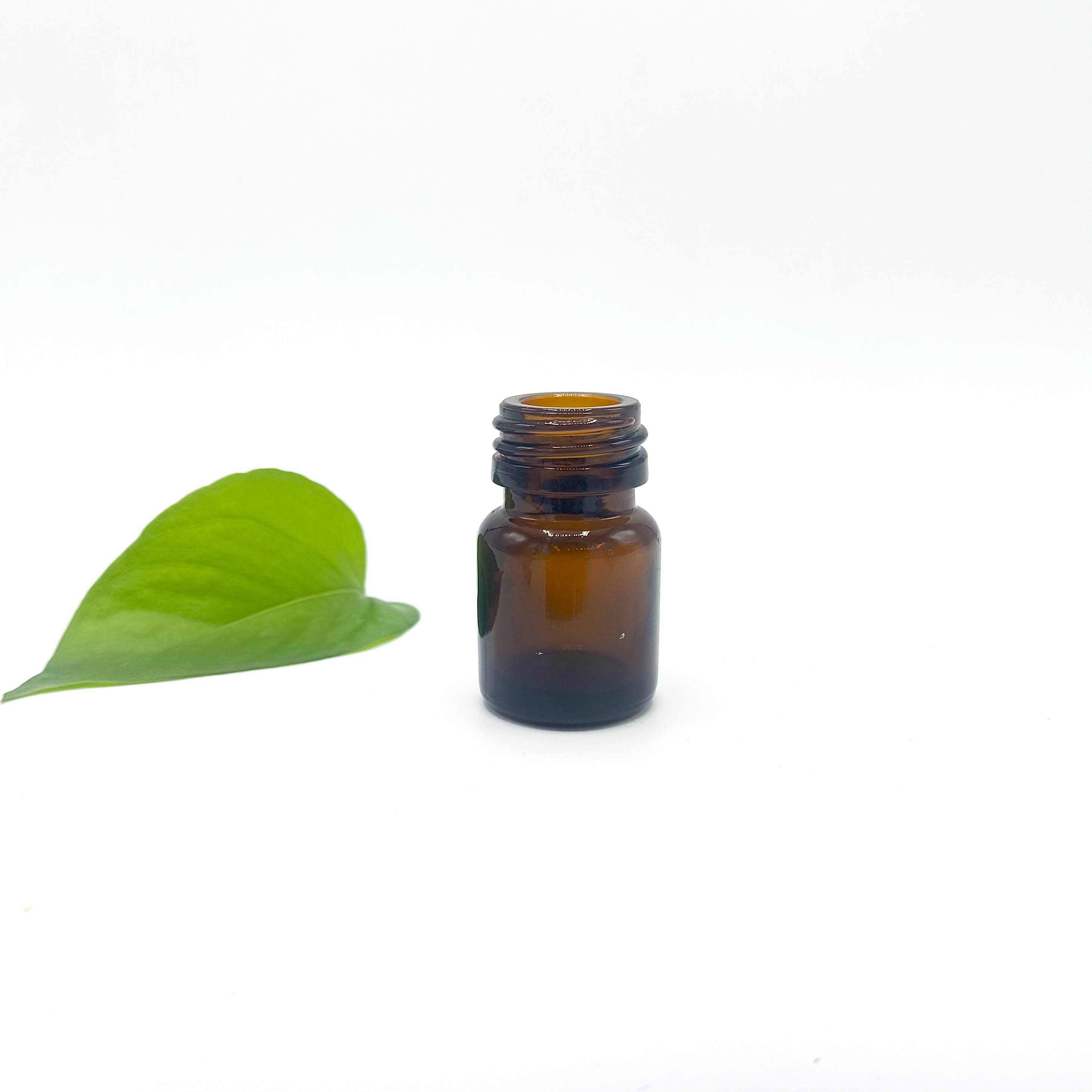

The amber glass bottle provides light protection. It filters harmful light between 450-500nm wavelengths. This includes ultraviolet light. It protects light-sensitive ingredients. These include vitamins and some antibiotics. It also protects plant extracts. The protection stops chemical breakdown from light exposure. This prevents medicine from losing effect. It also prevents impurity formation.
The manufacturing process includes many quality checks. Workers first inspect the raw glass tubes. They verify the chemical makeup. They also check the tube appearance. Next, the tubes are formed into bottles. This uses carefully controlled flames. It also uses precision molds. The process ensures even wall thickness. Then, bottles undergo annealing. They are heated to about 560°C. They cool slowly following a set program. This removes internal stress from cooling. It makes the bottles stronger. It also improves heat resistance.
Final inspection has several tests. Dimensional checks use special tools. These include calipers and optical measures. They confirm proper bottle mouth and body sizes. Pressure tests simulate filling and shipping conditions. Tilt tests ensure bottles stand straight. Automatic optical systems find cracks or bubbles. They remove any defective bottles.
The 5ml oral liquid glass bottle has a very wide range of applications:
In the field of prescription drugs: widely used in various Western medicines and Chinese herbal compound oral liquids for cold and cough relief, anti-inflammatory and analgesic, digestive system, etc., to ensure accurate single dose.
In the field of health products and nutritional supplements: used in liquid vitamin supplements, deep-sea fish oil, probiotic oral liquids, etc., the brown bottle can effectively protect these easily oxidized and photosensitive nutrients.
In the field of pediatric medication: the small dose of 5ml is very suitable for children, and accurate dosage is especially important for the safety of pediatric medication.
In the field of veterinary medicine: it is also applicable to precise drug delivery for pets and commercial animals.
With increasing global health awareness and the development of personalized medicine, the demand for small-dose, high-precision, and highly safe pharmaceutical packaging will continue to grow.5ml oral liquid bottles have mature technology. They provide reliable safety. They also have wide applicability. They will continue to be the main product in liquid drug packaging. New materials are bringing changes. These include COC/COP plastics. Smart packaging is also adding new features. Examples are caps with RFID tags. These innovations are giving new energy to this traditional packaging type.
