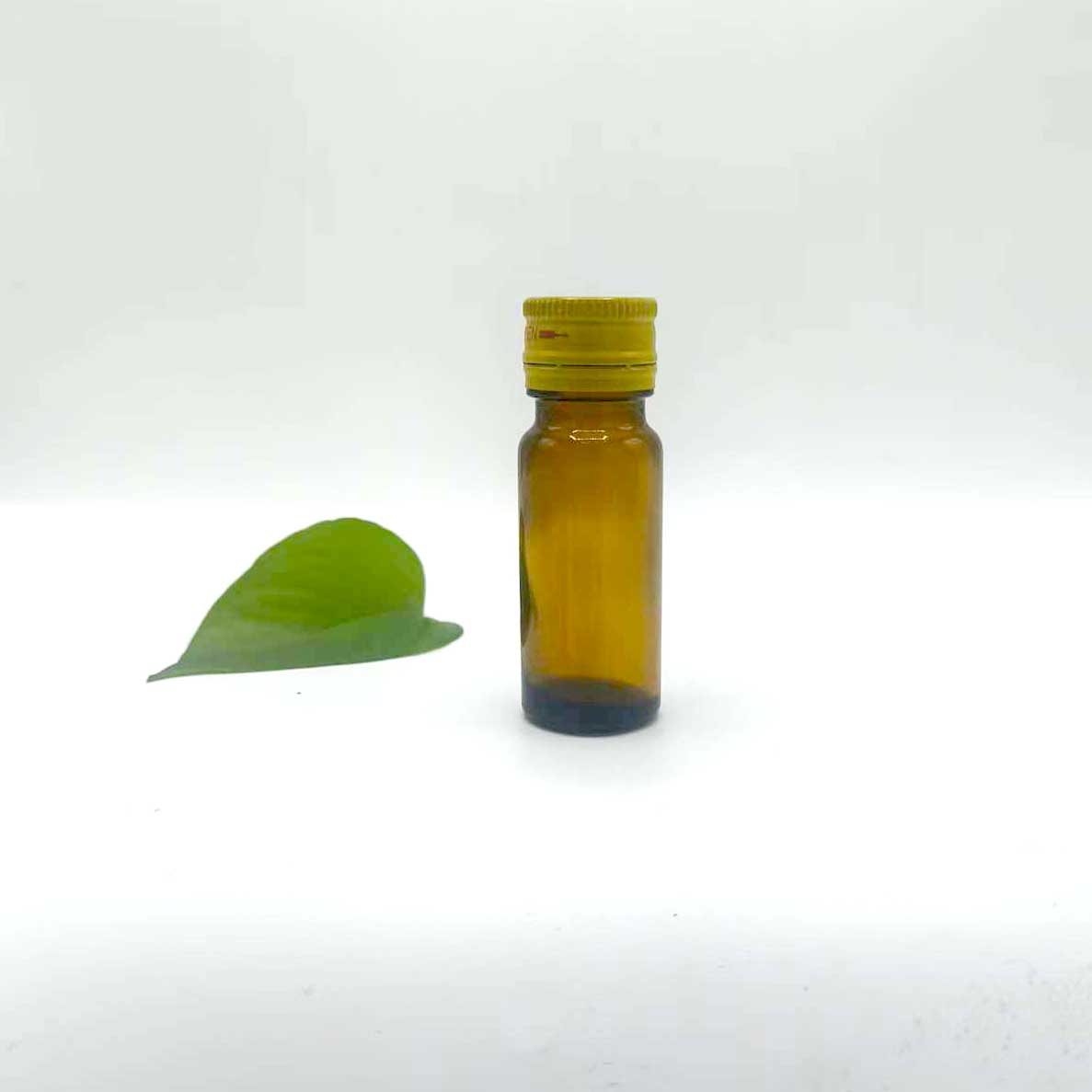

Meet Kangbo's 10ml oral liquid bottle. It offers both quality and low price. We make it in China. We use premium neutral borosilicate glass. It meets top pharmacopoeia standards. It does not cost much money.Use it for traditional herbal medicines. Use it for modern drugs. Use it for health supplements. It gives precise dosing. It provides good light protection.Do you need custom branding? We provide smart packaging. We always consider your budget. Let us work together.We're here to make it happen! At Kangbo, we deliver safe, smart packaging solutions that keep your budget in mind.
| project | Detailed parameters and feature descriptions |
| nominal capacity | 10ml ± 0.15ml (in accordance with pharmacopoeia requirements) |
| Full capacity | ≥12.5ml (Allow sufficient space to prevent overflow during filling) |
| Material type | Neutral borosilicate glass (3.3 glass) / Low borosilicate glass |
| Glass color | Transparent/Amber (Brown, light transmittance ≤30%) |
| Bottle size | Diameter 22.5±0.3mm, height 62±0.5mm |
| Bottle mouth specifications | 13mm standard thread, compatible with universal rubber stoppers and bottle caps. |
| Wall thickness uniformity | ≤0.15mm (to ensure good thermal conductivity and mechanical strength) |
| Temperature resistance | It can withstand high-temperature sterilization at 121℃ and has a thermal shock strength of ≥90℃. |
| Sealing system | Butyl rubber stopper + aluminum cap + plastic cap triple seal |
| Chemical stability | Water resistance grade: 1, Acid resistance grade: 1, Alkali resistance grade: 2 |
Neutral borosilicate glass has another name: 3.3 glass. It has excellent thermal shock resistance. It also has strong chemical stability. Its thermal expansion coefficient is (3.3±0.1)×10⁻⁶K⁻¹. This lets it survive sudden temperature changes without breaking. The material meets the top global standards. It resists water, acid, and alkali very well. This effectively stops any reaction between the drug and the package. It keeps the drug stable for its entire shelf life.
The amber-colored oral liquid bottle effectively blocks light with wavelengths of 300-500nm, especially ultraviolet light (300-400nm), which has a blocking rate of over 95%. This property provides vital protection. It is crucial for photosensitive drugs. Examples include vitamins and some antibiotics. It also protects traditional Chinese medicine extracts. The protection stops light-induced damage. It prevents chemical reactions from light exposure. These reactions include decomposition and oxidation.
The stopper is made of pharmaceutical-grade halogenated butyl rubber, whose sealing performance, puncture resistance, and chemical stability all meet pharmacopoeia requirements. The aluminum cap is tightly secured using a mechanically rolled edge process, while the plastic outer cap provides additional physical protection and anti-counterfeiting features. This triple-seal structure controls oxygen permeability to ≤0.01mg/24h and moisture permeability to ≤0.1mg/24h.
| Application areas | Examples of typical dosage forms | Special technical requirements | market share |
| Traditional Chinese medicine oral liquid | Oral liquid for clearing heat and detoxifying, oral liquid for replenishing qi and nourishing blood, oral liquid for relieving cough and resolving phlegm, oral liquid for calming the mind and nourishing the brain, etc. | Light-proof packaging, acid and alkali resistance, and odor absorption prevention. | Approximately 45% |
| Chemical pharmaceutical preparations | Antibiotic solutions, antipyretic and analgesic solutions, antihistamine solutions, vitamin supplements, etc. | High sealing performance, oxidation prevention, and precise dosage control | Approximately 35% |
| Health supplements and nutritional liquids | Probiotic oral liquid, fish oil liquid supplement, collagen liquid, dietary fiber beverage, etc. | Transparent bottle design, no odor migration, easy to open | Approximately 15% |
| Special Purpose Drugs | Pediatric medications, veterinary medications, clinical trial medications, hospital preparations, etc. | Safety cap, small-dose compatibility, special labeling requirements | Approximately 5% |
Raw material preparation → glass melting → feeding and forming → annealing → quality inspection → packaging and sterilization. The glass undergoes annealing at 560±10°C. A precisely controlled cooling curve is then applied. This process eliminates internal stress in the glass. It ensures the final product's mechanical strength.
Dimensional Accuracy: The oral liquid bottle mouth diameter must stay within ±0.3mm. This guarantees compatibility with filling equipment.
Mechanical Strength: Each bottle must withstand internal pressure ≥0.8MPa. Vertical axis deviation cannot exceed 0.5mm.
Appearance Quality: An automated optical inspection system removes defective products. It rejects bottles with bubbles, stones, or cracks.
Chemical properties: Water resistance, acid resistance, and alkali resistance tests were conducted strictly in accordance with YBB standards.
The product is manufactured in a Class 10,000 clean environment, and the inner packaging uses sterile packaging materials. The microbial limits comply with the pharmacopoeia regulations.
The production process of 10ml oral liquid bottles has been developed over decades and has formed a complete standard system and quality control specifications. The industry widely recognizes these products. They are known for their consistency and reliability.
The 10ml oral liquid bottle provides the best economic value among all sizes. It uses less material. It allows higher production efficiency. It costs less to store and transport. Each bottle costs about 30% less than a 5ml bottle. It also needs 25% less storage space than a 20ml bottle.
The product meets all required pharmaceutical standards. These include the Chinese Pharmacopoeia, USP, and EP. It satisfies registration requirements for both domestic and international markets.
Novel materials such as cyclic olefin polymers (COP/COC) are gradually being applied to high-end pharmaceutical packaging. They have lower protein adsorption and higher transparency, making them particularly suitable for sensitive drugs such as biologics.
Smart packaging technology is being combined with traditional glass bottles:
Bottle caps with integrated RFID chips enable end-to-end traceability of pharmaceuticals.
Temperature-sensitive labels visually indicate whether the storage temperature of medicines exceeds the standard.
Medication reminder devices improve patient medication adherence.
Lightweight design has become an industry trend, reducing the amount of glass used while ensuring strength by optimizing the bottle structure; at the same time, recyclable and environmentally friendly packaging solutions are receiving increasing attention.
We can provide our clients with comprehensive technical support services:
Personalized bottle design and development , compatibility testing of filling production lines , drug packaging compatibility research , technical support for registration and application , and quality assurance for large-scale production .
As an important player in the pharmaceutical packaging field, the 10ml oral liquid bottle continuously provides pharmaceutical companies with safe, reliable, and economical packaging solutions thanks to its superior physicochemical properties, mature manufacturing processes, and wide applicability. With the continuous application of new materials, processes, and technologies, this traditional packaging format is being revitalized, making a greater contribution to ensuring drug safety and improving the medication experience.
